Pro flagpole for winch system metal 3-18m

The winch system has astainless steel winch that regulates the halyard inside the flagpole. A comfortable way to raise flag and protect it against theft and sabotage.

Art.no.	Length m	Description	Top Ø Base Ø	Weight in Kg
F032220	3 m	Flagpole 3m Pro WinchHW FM	65 mm 103 mm	10
F042220	4 m	Flagpole 4m Pro WinchHW FM	65 mm 113 mm	13
F052220	5 m	Flagpole 5m Pro WinchHW FM	65 mm 118 mm	15
F062220	6 m	Flagpole 6m Pro WinchHW FM	65 mm 120 mm	16
F072220	7 m	Flagpole 7m Pro WinchHW FM	65 mm 120 mm	18
F082220	8 m	Flagpole 8m Pro WinchHW FM	65 mm 120 mm	19
F092220	9 m	Flagpole 9m Pro WinchHW FM	65 mm 120 mm	22
F102220	10 m	Flagpole 10m Pro WinchHW FM	65 mm 140 mm	31
F122220	12 m	Flagpole 12m Pro WinchHW FM	65 mm 140 mm	37
F142110	14 m*	Flagpole 14m Pro WinchHW VK	65 mm 180 mm	56
F162110	16 m*	Flagpole 16m Pro WinchHW VK	65 mm 180 mm	71
F182110	18 m*	Flagpole 18m Pro WinchHW VK	65 mm 180 mm	87

*Packed in white foil

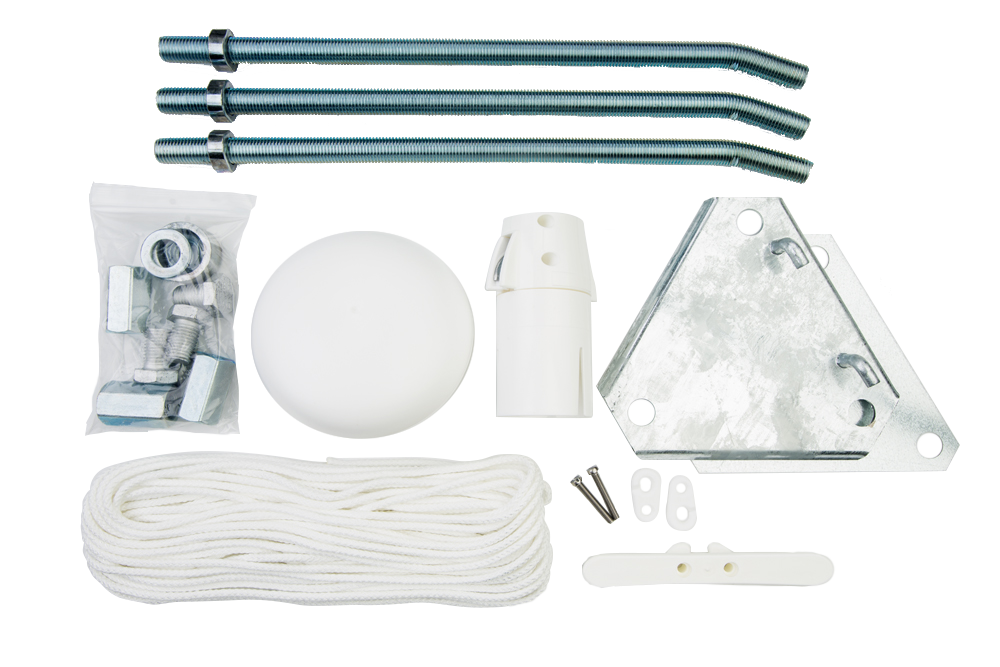

Accessories box for 3-12m Pro Winch flagpole

Art.no.	Length m	Description	Weight in Kg
40013	3 - 12 m	Accessories box Pro Winch 3-12m - onion gold	7,8
40013-1	3 - 12 m	Accessories box Pro Winch 3-12m - onion silver	7,8
40013-2	3 - 12 m	Accessories box Pro Winch 3-12m - flat white	7,8
40013-3	3 - 12 m	Accessories box Pro Winch 3-12m - flat grey	7,8

Box includes:

Art.no- 11102-2 assambly instructions for Pro

Art.no- 24101-5 ground plate Pro 3-12m

Art.no- 40089 base plate auxiliary Pro 3-12m

Art.no- 40008 ancor rod Pro M20x450mm

Art.no- 24101-2 nuts set Pro 3-12m

Art.no- 37305 sleeve 65mm plastic white

Art.no- 32061 ring weight plastic white 3-12m

Art.no- 30415 snap hook metal

Art.no– 23175 small plastic ball

Art.no- 23140-2 Winch handle for 6-12m (plastic
Winch)/ 6-18m (metal Winch)

Accessories box for 14-18m Pro Winch flagpole

Art.no.	Length m	Description	Weight in Kg
32041	14 - 18 m	Finial box Winch 14-18m - onion gold (2-part)	2,2
32105	14 - 18 m	Finial box Winch 14-18m - onion silver (2-part)	2,2
24101-9	14 - 18 m	Ground attachment Pro 14-18m	22

Box includes:

Art.no- 31520 sleeve 65mm plastic white for finial 2-part

Art.no- 31017 truckhead for onion finial white 2-part

Art.no- 35105-1 top screw for finial 165mm for 2-part

Art.no- 30415 snap hook metal

Art.no- 23175 small plastic ball

Art.no- 23155 chain weight for 6-18m

Art.no- 23140-3 Winch handle 14-18m (plastic Winch)

Ground attachment needs to be ordered separately.
