Nordic flagpole for winch system plastic
| Art.no. | Length m | Description | Top Ø Base Ø | Weight in Kg |
|---|---|---|---|---|
|
F031320 |
3 m* |
Flagpole 3m Nordic WinchNM FM |
65 mm 120 mm |
11 |
|
F041320 |
4 m* |
Flagpole 4m Nordic WinchNM FM |
65 mm 120 mm |
14 |
|
F051320 |
5 m* |
Flagpole 5m Nordic WinchNM FM |
65 mm 120 mm |
16 |
|
F061320 |
6 m |
Flagpole 6m Nordic WinchNM FM |
65 mm 120 mm |
17 |
|
F071320 |
7 m |
Flagpole 7m Nordic WinchNM FM |
65 mm 120 mm |
19 |
|
F081320 |
8 m |
Flagpole 8m Nordic WinchNM FM |
65 mm 120 mm |
20 |
|
F091320 |
9 m |
Flagpole 9m Nordic WinchNM FM |
65 mm 120 mm |
23 |
|
F101320 |
10 m |
Flagpole 10m Nordic WinchNM FM |
65 mm 140 mm |
32 |
|
F121320 |
12 m |
Flagpole 12m Nordic WinchNM FM |
65 mm 140 mm |
38 |
|
F141310-001 |
14 m** |
Flagpole 14m Nordic WinchNM VK Split |
65 mm 175 mm |
61 |
|
F161310-001 |
16 m** |
Flagpole 16m Nordic WinchNM VK Split |
65 mm 175 mm |
76 |
|
F181310-001 |
18 m** |
Flagpole 18m Nordic WinchNM VK Split |
65 mm 175 mm |
91 |
Flagpole is delivered complete with internal winch, inside halyard and steel base.
* Special product, ask for more information
**Packed in white foil

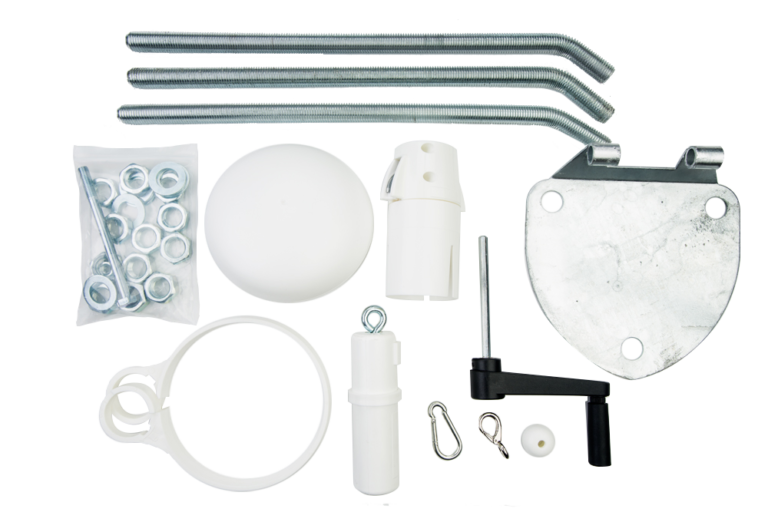

Accessories box for 3-12m Nordic Winch flagpole
| Art.no. | Length m | Description | Weight in Kg |
|---|---|---|---|
|
40003 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - onion gold |
7,3 |
|
40003-1 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - flat white |
7,3 |
|
40003-2 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - onion silver |
7,3 |
|
40003-3 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - onion white |
7,3 |
|
40003-4 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - flat grey |
7,3 |
|
40003-33 |
3 - 12 m |
Accessories box Nordic Winch 3-12m - flat black |
7,3 |
Accessories box consist of ground plate, anchor rods, nuts set, assembly instructions, standard finial of your choice, sleeve, ring weight, stainless steel snap-hook, small plastic ball and handle.
Box includes:
Art.no- 22119 ground plate Nordic 3-12m
Art.no- 23313 anchor rod Nordic M20x500mm,
Art.no- 24102 nuts set Nordic, assembly instructions.
Art.no- 37305 sleeve 65mm plastic white.
Art.no- 32061 ring weight plastic white 3-12m .
Art.no- 30415 snap hook metal.
Art.no- 23175 small plastic ball
Art.no- 23140-2 winch handle for 6-12m (plastic Winch)/ 6-18m (metal Winch)
Ground plate is packed separately.

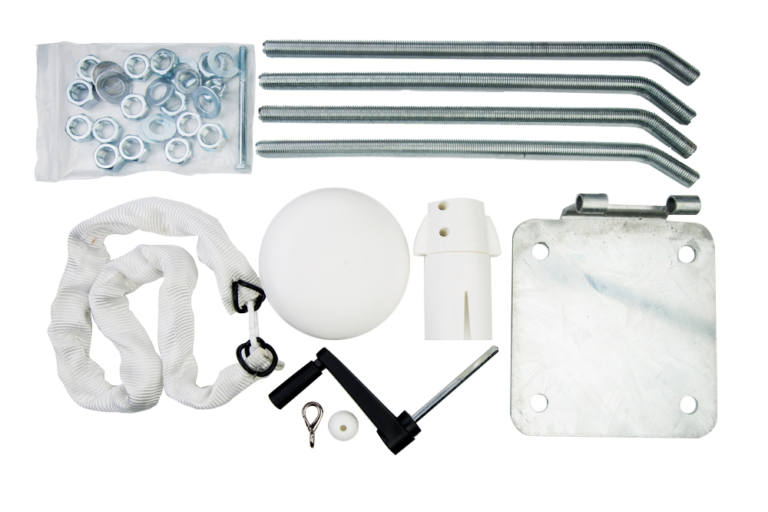

Accessories box for 14-18m Nordic Winch flagpole
| Art.no. | Length m | Description | Weight in Kg |
|---|---|---|---|
|
40057-1 |
14 - 18 m |
Accessories box Nordic Winch 14-18m - onion silver |
9,4 |
Accessories box consist of assembly instructions, standard finial of your choice, sleeve, chain weight, stainless steel snap-hook, small plastic ball and handle. Ground plate, anchor rods, nuts set are packed separately.
Box includes:
Art.no- 22014-2 ground plate Nordic 14-18m
Art.no- 23313 anchor rod Nordic M20x500mm,
Art.no- 24102 nuts set Nordic, assembly instructions.
Art.no- 37305 sleeve 65mm plastic white.
Art.no- 23155 chain weight for 6-18m
Art.no- 30415 snap hook metal.
Art.no- 23175 small plastic ball
Art.no- 23140-3 winch handle 14-18m (plastic Winch)
Ground plate is packed separately.
Accessories box for 20-24m Nordic Winch flagpole
| Art.no. | Length m | Description | Weight in Kg |
|---|---|---|---|
|
32125-1 |
20 - 24 m |
Finial box Winch 20-24m - onion silver (2-part) |
2 |
|
32125 |
20 - 24 m |
Finial box Winch 20-24m - onion gold (2-part) |
2 |
|
40019-2 |
20 - 24 m |
Ground attachment Nordic 20-24m |
30 |
Accessories box consist of assembly instructions, standard finial of your choice, sleeve, chain weight, stainless steel snap-hook, small plastic ball and handle. Ground attachment needs to be ordered separately.
Box includes:
Art.no- 31720 sleeve 75mm metal white 20-24m
Art.no- 35105-1 top screw for finial 165mm for 2-part
Art.no- 30415 snap hook metal
Art.no- 23175 small plastic ball
Art.no- 23157chain weight for 20-24m
Art.no- 30415 snap hook metal
Art.no- 23140-3 winch handle 14-18m (plastic Winch)
