Nordic flagpole for external halyard system 14-24m

Flagpoles are delivered with steel base and cleat holes.

Art.no.	Length m	Description	Top Ø Base Ø	Weight in Kg
F141110-001	14 m*	Flagpole 14m Nordic Ext VK Split	65 mm 175 mm	59
F161110-001	16 m*	Flagpole 16m Nordic Ext VK Split	65 mm 175 mm	74
F181110-001	18 m*	Flagpole 18m Nordic Ext VK Split	65 mm 175 mm	89
F201110-001	20 m*	Flagpole 20m Nordic Ext VK Split	75mm 230mm	175
F221110-001	22 m*	Flagpole 22m Nordic Ext VK Split	75mm 230mm	185
F241110-001	24 m*	Flagpole 24m Nordic Ext VK Split	75mm 230mm	195

*Packed in white foil

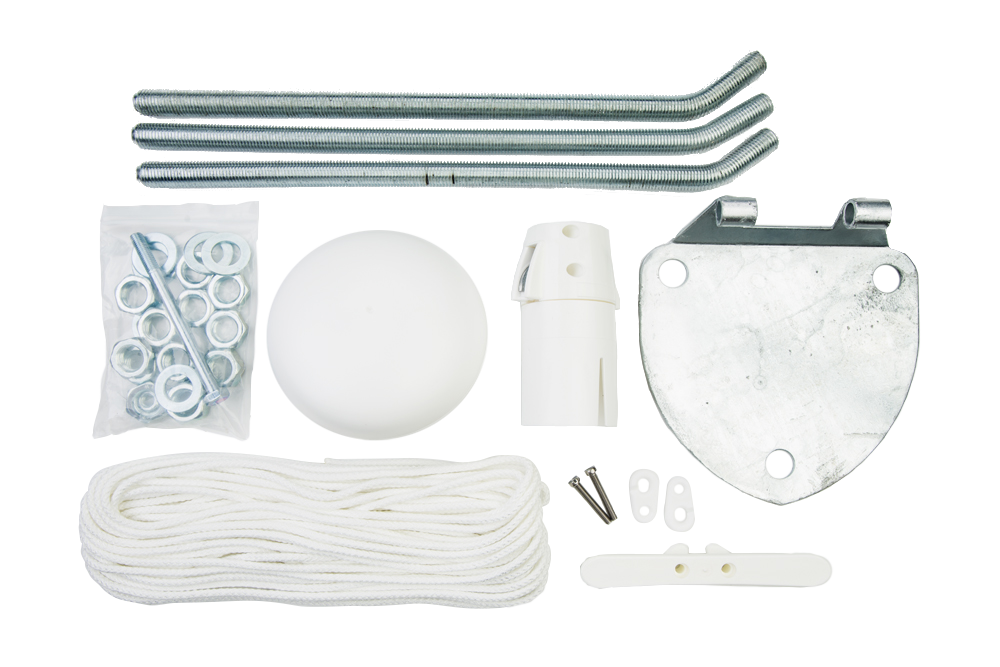

Accessories box for 14-18m Nordic external halyard system

Art.no.	Length m	Description	Weight in Kg
40056-0	14 - 18 m	Accessories box Nordic 14-18m – onion gold	7,6
40056-1	14 - 18 m	Accessories box Nordic 14-18m – onion silver	7,6

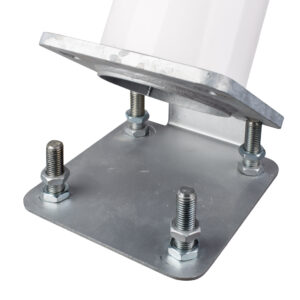

Art.no- 22014-2 ground plate Nordic 14-18m

Art.no- 23313 anchor rod Nordic M20x500mm,

Art.no- 24102 nuts set Nordic, assembly instructions.

Art.no- 37305 sleeve 65mm plastic white.

Art.no- 38020 cleat white with screws.

Art.no- 30416 plastic hooks white.

Art.no 30512-3 halyard for 14-18 flagpole.

Ground plate is packed separately.

Art.no.	Length m	Description	Weight in Kg
32126	20 - 24 m	Finial box 20-24m - onion silver (2-part)	2
32127	20 - 24 m	Finial box 20-24m - onion gold (2-part)	2
40019-2	20 - 24 m	Ground attachment Nordic 20-24m	30

Art.no- 31720 sleeve 75mm metal white 20-24m.

Art.no- 35105-1 top screw for finial 165mm for 2-part

Art.no- 30416 plastic hook white

Art.no- 30401 rope 5mm/rm for Linus flagpole

Art.no- 38020 cleat white with screws

Ground attachment needs to be ordered separately.
